Applied materials: barite, coal slime, potassium feldspar, tungsten carbide, copper ore, slag, hematite, white ash, gold ore, aluminum powder, high alumina porcelain, iron fine powder, fluorite ore, etc.

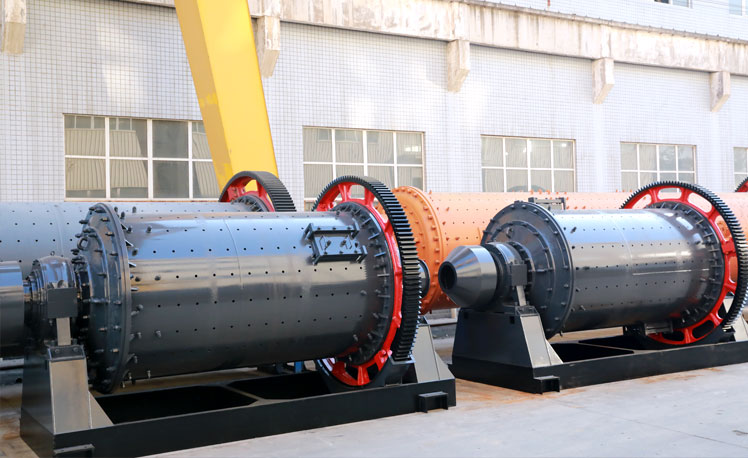

Ball Mill

The ball mill is a kind of grinding machine, which includes wet or dry operation. The wet operation is equipped with a classifier, and the dry operation is configured with a wind suction and separation device.

Production capacity
0.65-615t/h
Feeding size
≤25mm

Chat Online

Hongxing Machinery-Leading Mining Machinery Manufacturer!

Ball Mill Introduction

A ball mill is a key machine used to crush and grind materials successively, widely used in many industries, such as cement, silicate products, new building materials, refractory materials, fertilizer, ferrous and non-ferrous metals beneficiation, and glass ceramics, etc. It can conduct the dry-type and wet-type grinding processes of various ores and other abrasive materials.

classification of ball mill

What Can A Ball Mill Grind?

All abrasive ores, abrasive materials, various stone materials, and some metals can be ground by a ball mill.

Common grinding materials for ball mills: 1) metallic ores such as gold ore, copper ore, iron ore, chromium ore, fluorite ore, phosphorite, etc. 2) chemical raw materials: quartz sand, feldspar, limestone, marble, zircon sand, cement clinker, slag, etc.

Outstanding Advantages

There are dry and wet grinding options; good operating conditions, grinding in a closed machine, less dust;
Stable operation, reliable performance, cheap grinding body, easy replacement, and low production cost;
It can be operated intermittently or continuously;
When pulverizing explosive materials, the grinding machine may be filled with inert gas instead of air.

ball mill advantages

We Can Do More!

We can provide program design, process flow design, standard and non-standard design and production lines for clients.

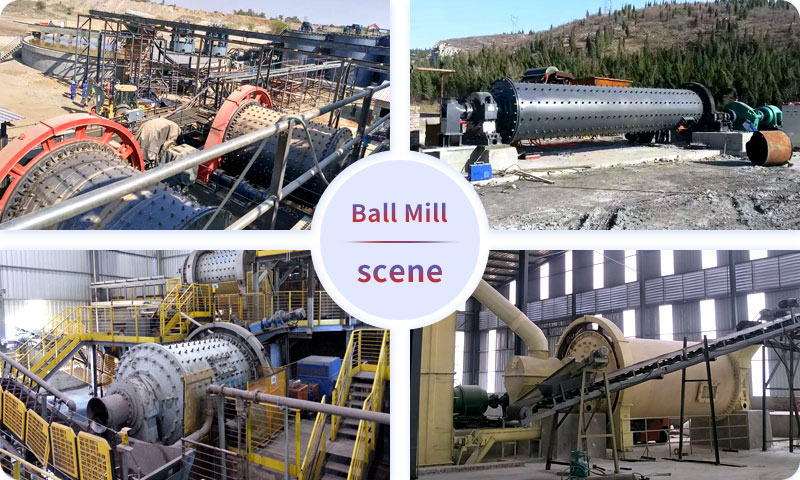

ball mill dressing production line

If you want to know more information, such as ball mill grinding concentration, grinding capacity, advantages, cost, wearing parts, discharge size, wearing parts service life, equipment quality, cost performance, cost of use, maintenance rate, please contact us or send an email at info@hxjq.com

Technical Data

Ball Mill

Model	Shell rotation speed （r/min）	Ball load (t)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Motor power (kw)	Total weight (t)
Ф900×1800	36-38	1.5	<20	0.075-0.89	0.65-2	18.5	5.85
Ф900×3000	36	2.7	<20	0.075-0.89	1.1-3.5	22	6.98
Ф1200×2400	36	3	<25	0.075-0.6	1.5-4.8	30	13.6
Ф1200×3000	36	3.5	<25	0.074-0.4	1.6-5	37	14.3
Ф1200×4500	32.4	5	<25	0.074-0.4	1.6-5.8	55	15.6
Ф1500×3000	29.7	7.5	<25	0.074-0.4	2-5	75	19.5
Ф1500×4500	27	11	<25	0.074-0.4	3-6	110	22
Ф1500×5700	28	12	<25	0.074-0.4	3.5-6	130	25.8
Ф1830×3000	25.4	11	<25	0.074-0.4	4-10	130	34.5
Ф1830×4500	25.4	15	<25	0.074-0.4	4.5-12	155	38
Ф1830×6400	24.1	21	<25	0.074-0.4	6.5-15	210	43
Ф1830×7000	24.1	23	<25	0.074-0.4	7.5-17	245	43.8
Ф2100×3000	23.7	15	<25	0.074-0.4	6.5-36	155	45
Ф2100×4500	23.7	24	<25	0.074-0.4	8-43	245	56
Ф2100×7000	23.7	26	<25	0.074-0.4	12-48	280	59.5
Ф2200×4500	21.5	27	<25	0.074-0.4	9-45	280	54.5
Ф2200×6500	21.7	35	<25	0.074-0.4	14-26	380	61
Ф2200×7000	21.7	35	<25	0.074-0.4	15-28	380	62.5
Ф2200×7500	21.7	35	<25	0.074-0.4	15-30	380	64.8
Ф2400×3000	21	23	<25	0.074-0.4	7-50	245	58
Ф2400×4500	21	30	<25	0.074-0.4	8.5-60	320	72
Ф2700×4000	20.7	40	<25	0.074-0.4	22-80	380	95
Ф2700×4500	20.7	48	<25	0.074-0.4	26-90	480	102
Ф3200×4500	18	65	<25	0.074-0.4	As per process conditions	630	149
Ф3600×4500	17	90	<25	0.074-0.4	As per process conditions	850	169
Ф3600×6000	17	110	<25	0.074-0.4	As per process conditions	1250	198
Ф3600×8500	18	131	<25	0.074-0.4	45.8-256	1800	260
Ф4000×5000	16.9	121	<25	0.074-0.4	45-208	1500	230
Ф4000×6000	16.9	146	<25	0.074-0.4	65-248	1600	242
Ф4000×6700	16.9	149	<25	0.074-0.4	75-252	1800	249
Ф4500×6400	15.6	172	<25	0.074-0.4	84-306	2000	280
Ф5030×6400	14.4	216	<25	0.074-0.4	98-386	2500	320
Ф5030×8300	14.4	266	<25	0.074-0.4	118-500	3300	403
Ф5500×8500	13.8	338	<25	0.074-0.4	148-615	4500	525
